Hole Punching and Embedding Two in One Machine

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Bag/Bags
    Delivery Time: 35 Days

Basic Info

Model No.: YMJ-PHOL-6000

Transmission Type: Rigid

Automatic Production Line: Assembly

Certification: ISO, CE

Automation: Automation

Flexible Production: Intelligent Manufacturing

Rhythm: Flow Production Line

Production Scope: Parts Production Line

Speed: About 6000 Cards/hour

Applicable Material: 0.1 Mm Copper Line, 0.125-3 Mm PVC/PEG/ABS

Additional Info

Packaging: Wooden Case

Brand: YUANMINGJIE

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO, CE

Port: Shenzhen

Product Description

Full Auto Hole Punching and Embedding Production Line is new generation for contactless smart card producing process, to realize the hole punching, antenna embedding and cutting procedures of smart card production line.

Which could be used for normal film material such as: PVC, PC etc., the depth of material within 0.125-0.4 mm, the largest width of film is 540 mm, the normal layout of film is 3×8(320 mm long) or 6×8(640 mm long), 5×5, 6×7, 4×8 are also compatible.

High automation saves about 3 operators for customers who use this production line.

Details of Hole Punching and Embedding Two-in-One machine:

The body of Hole Punching and Embedding Production Line including feeding group, hole punching unit, embedding group, cutting group and collecting group. Whole machine is sealed while the movable windows are made of organic glass with security switch, which are used to observe working conditions and guarantee safety of operations.

The whole production line is full auto machine, while the PC main control system, motion control and unique design make the production line work stable and efficient. Which leads to easy operation and multiple functions. The feeding of roll material part adopts the convenient clamp for quick feeding. With the correction rectifying device, Hole punching and embedding machine could correct position of roll material to ensure the uniformity of material. Besides, it could detect the condition of material feeder and material collection device by photosensor, it will alert before the roll material runs out or the material collection device becomes full.

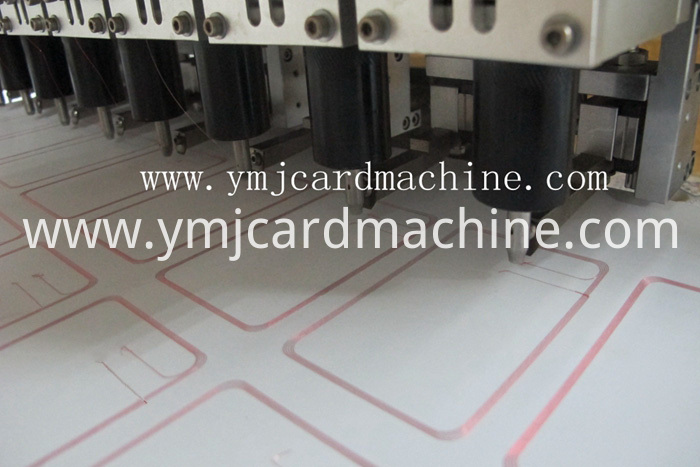

Detail of Antenna Embedding procedure


Our hole punching and embedding machine adopts the advanced ultrasonic embedding techniques, use professional software (which are developed by YUANMINGJIE Technology) and CAD, it can embed different shapes of antenna according to specific needs, such as snake or circle antenna layer of dual interface smart cards and Inlay coils of non-contact smart cards. Speed of production line is about 6000 cards/hour (the 3×8 sheet). Users could select 2 or 3 work table to embed antenna, which greatly enhance the productivity. Servo positioning system guarantee the precise working and uniform distance between coils.


Yuanmingjie Technology


Company Profile:

Shenzhen Yuanmingjie Technology Co., Ltd was founded in 2010 for research and development of intelligent manufacturing equipment. With many years innovations and development, Yuanmingjie has become the High Technology Corporation who has got high reputation in China and overseas. Yuanmingjie is the Shenzhen innovative enterprise and the member of Shenzhen software industry association, we also got Guangdong province credible enterprise identification.

Company Office


Yuanmingjie integrated R&D, manufacturing and sales, who concentrates on supplying better equipment and supporting facilities solution for smart card factories. Our main products include production line for contact smart card, contacless smart card, dual interface smart card, RFID electrical labeling and personalized equipment.

Elites are valued by Yuanmingjie technology, lots of professionals with more than 10 years experience in equipment development gather here. With so many years of technical innovation and experience, Yuanmingjie breakthrough the traditional dependence of domestic enterprises on foreign techniques, reaches a leading position in China, who firstly adopts advanced Ultrasonic Embedding technique and Precision Vibrator Bowl. Meanwhile dual interface smart card equipment and milling and embedding two in one equipment have got National Invention Patent and CE certificate.

 Ymj Workshop

Spirit of Yuanmingjie: To develop by guide of market, to gain customers by credibility, to gain reputation by better quality.

Mission of Yuanmingjie: To create value for customers and society constantly.

Vision of Yuanmingjie: With continual technical innovation, wisdom and efforts from members of yuanmingjie, we will fulfill customers current need and create high needs, to be the top automatic equipment and technical solutions supplier.

Looking for ideal Smart Card Punching Machine Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Smart Card Multiple Function Machine are quality guaranteed. We are China Origin Factory of Punching Embedding and Cutting. If you have any question, please feel free to contact us.

Product Categories : Contactless Smart Card Production Line > All-in-One Machine

Product Images
  • Hole Punching and Embedding Two in One Machine
  • Hole Punching and Embedding Two in One Machine
